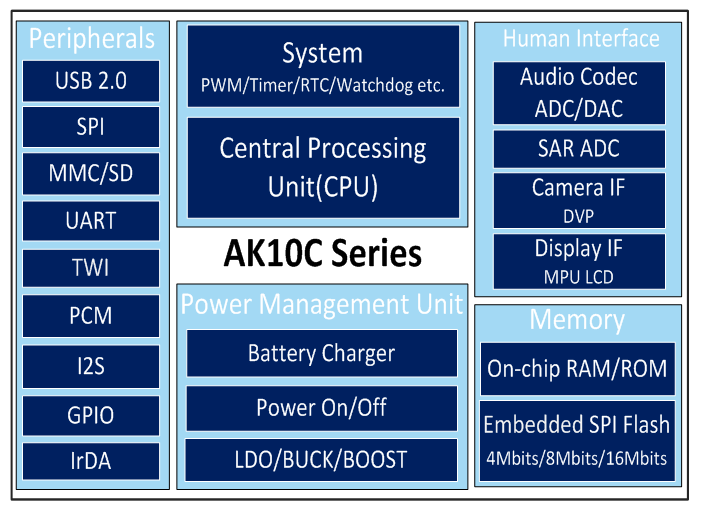

Specifications

CPU

ARM926EJ-S

Up to 200MHz

Power

Management Unit

（PMU）

Battery Charger

Power On/Off

LDO/BUCK/BOOST

Audio Codec

two DAC and two ADC

Supports 8KHz/9.6KHz/11.025KHz/12KHz/16KHz/22.05KHz/24KHz/32KHz/44.1KHz/48KHz Sampling Rate

Supports multiple audio coding/decoding formats

Audio 3A function (AEC, AGC and ANR)

Camera

Supports DVP interface

Compatible with BT.601/BT.656 standard

Supports YUV422/Only Y/ Bayer RAW data

Display

Supports 8-bit MPU LCD interface

Resolution up to 320*240

Peripherals

USB2.0

MMC/SD

SPI

TWI

PCM

I2S

UART

GPIO

PWM

IrDA

Memory

On-chip RAM and ROM

Embedded 4Mbit/8Mbits/16Mbits SPI Flash

Package

LQFP64, 7mm x 7mm x 1.4mm

QFN40, 5mm x 5mm x 0.75mm
