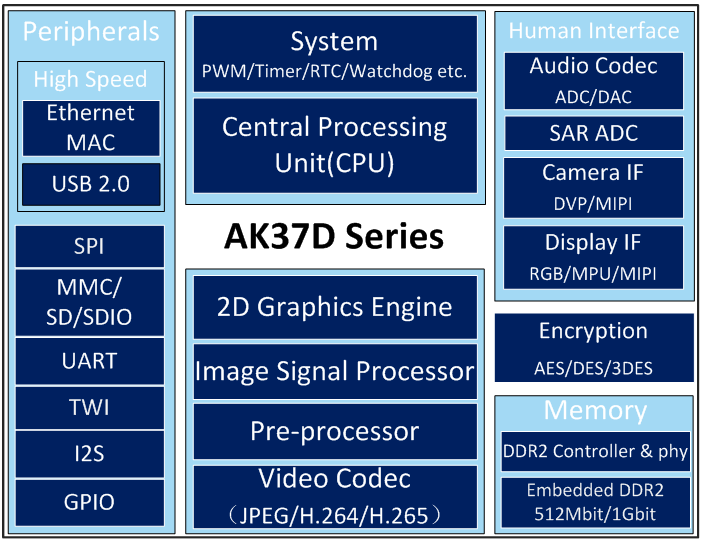

Specifications

CPU

ARM926EJ-S

Up to 800MHz

ISP

3A (AWB, AE, AF)

Gamma Correction

Defect Pixel Correction

Lens Shading Correction

Green Balance

3DNR,2DNR

Sharp

Pre-processor

Down/up scaler

On-Screen Display (OSD)

Privacy Mask

Video Codec

Video Encoder

?       H.265/H.264 encoder, up to 5MP

?       JPEG encoder, up to 2592*2592

?       Supports multi-stream, Video*3 + JPEG*1

Video Decoder

?       H.265/H.264 decoder, up to 5MP

?       JPEG decoder, up to 2592*2592

Audio Codec

single DAC and single ADC

Supports 8KHz/9.6KHz/11.025KHz/12KHz/16KHz/22.05KHz/24KHz/32KHz/44.1KHz/48KHz Sampling Rate

Supports multiple audio coding/decoding formats

Audio 3A function (AEC, AGC and ANR)

Camera

Supports dual-CIS input

Supports DVP/MIPI interface

Compatible with BT.601 standard

Supports Bayer RAW data and YUV422 data

Display

Supports 18-bit/16-bit/9-bit/8-bit MPU LCD interface

Supports 24-bit/18-bit/16-bit/8-bit RGB LCD interface

Supports 4-lane MIPI LCD interface

Resolution up to 1280*800

2D Graphics Engine

Image cropping

Down scaling and up scaling

Image rectangular mapping

Alpha blending

Rotation:90°/180°/270°

Encryption

Supports AES/DES/3DES encryption algorithms

Peripherals

USB2.0

Ethernet MAC

MMC/SD/SDIO

SPI

TWI

I2S

UART

GPIO

PWM

Memory

Embedded 512Mbit/1Gbit DDR2

Package

e-TQFP144, 16mm x 16mm x 1mm
